Home » Products » FLEX&NM&SE FITTING » Flex conduit fittings

:: Flex conduit fittings

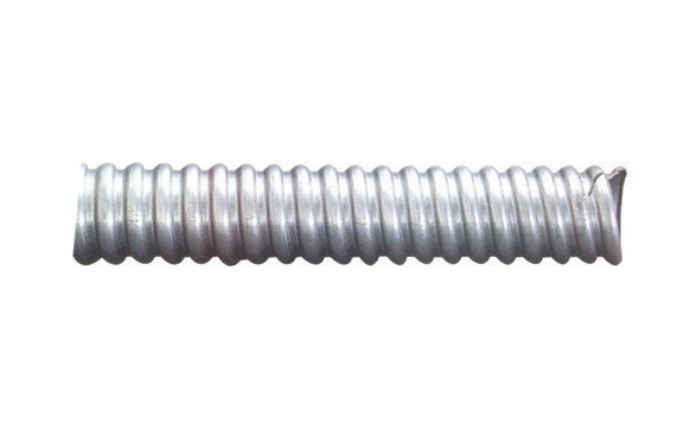

STEEL FLEXIBLE CONDUIT

  • Model: 98501-98511
    Certifications: UL
    FLEXIBLE-CONDUIT-ALUMINUM
  • Inquiry
    • STEEL FLEXIBLE CONDUIT

products detail


CATALOG NUMBER

TRADE SIZE

OUTSIDE

Min/Max

(MM)

THICKNESS

Min/Max

(MM)

98501

3/8'

9.52/9.98

14.22/15.49

985021/2''15.87/16.3821.84/23.36
985033/4''21.62/21.2026.54/28.06
985041''
25.4/26.433.02/35.05
985051-1/4''
31.75/33.0239.37/41.40
985061-1/2''38.10/40.046.99/49.53
985072''50.8/52.8359.69/62.23
985082-1/2''
63.5/-72.64/77.72
985093''76.2/-85.34/90.42
985103-1/2''
88.9/-98.04/103.12
985114''101.6/-110.74/115.84




Immediately Consult
Name *
Email *
Phone
Message *
Verification code *
  Click Refresh
Tag: ALUMINUM FITTING,FLEXIBLE METAL CONDUIT FITTING,CABLE CONNECTOR,FLEX CONNECTOR
Related Products
90° LIQUID-TIGHT CONNECETORS - NYLON
90° LIQUID-TIGHT CONNECETORS - NYLON
CONDUIT BODIES FOR E.M.T. & RIGID SET SCREW TYPE - ALUMINUM
CONDUIT BODIES FOR E.M.T. & RIGID SET SCREW TYPE - ALUMINUM
CONDUIT BODIES FOR E.M.T. & RIGID SET SCREW TYPE - ALUMINUM
CONDUIT BODIES FOR E.M.T. & RIGID SET SCREW TYPE - ALUMINUM
CONDUIT BODIES FOR E.M.T. & RIGID SET SCREW TYPE - ALUMINUM
CONDUIT BODIES FOR E.M.T. & RIGID SET SCREW TYPE - ALUMINUM
Related News

Other Products

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST

Certifications: UL
UL FILE NO.:3/8"- 3/4": E315258
1":E315256
USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258 1''
USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
FLEX CONNECTORS - SADDLE TYPE - WITH INSULATED THROAT - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258
USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.

FLEX CONNECTORS - SADDLE TYPE - WITH INSULATED THROAT - ZINC DIE CAST
BX FLEX CONNECTOR - SET SCREW TYPE - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315256
USE:FOR USE IN DRY LOCATIONS TO CONNECT STANDARD FLEXIBLE METAL CONDUIT TO A BOX OR ENCLOSURE.

BX FLEX CONNECTOR - SET SCREW TYPE - ZINC DIE CAST
FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258 3/8'' - 3/4''
E315256 1'' - 4''
USE:USED TO TERMINATE STANDARD DTANDARD FLEXIBLE METAL CONDUIT TO A 1/2" KNOCKOUT OF DRY LOCATION BOX OR ENCLOSURE.

FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR - ZINC DIE CAST
FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258 3/8'' - 3/4''
E315256 1'' - 4''

FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST
