Home » Products » FLEX&NM&SE FITTING » Flex conduit fittings

:: Flex conduit fittings

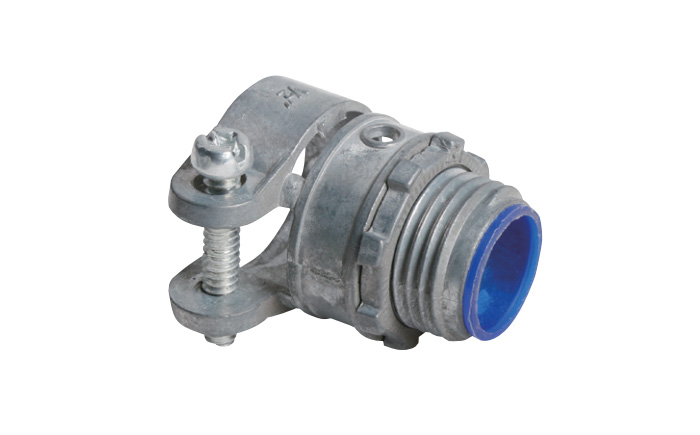

FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST

  • Model: 82059-A-82069-A
    Certifications: UL
    UL FILE NO.: E315258 3/8'' - 3/4''
    E315256 1'' - 4''
  • Inquiry
    • FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST
    • FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

82059-A

3/8''

50

500

82060-A1/2''25250
82061-A3/4''
25250
82062-A1''
10100
82063-A1-1/4''
10100
82064-A1-1/2''550
82065-A2''
1040
82066-A2-1/2''
-10
82067-A3''-10
82068-A3-1/2''-1
82069-A4''-1

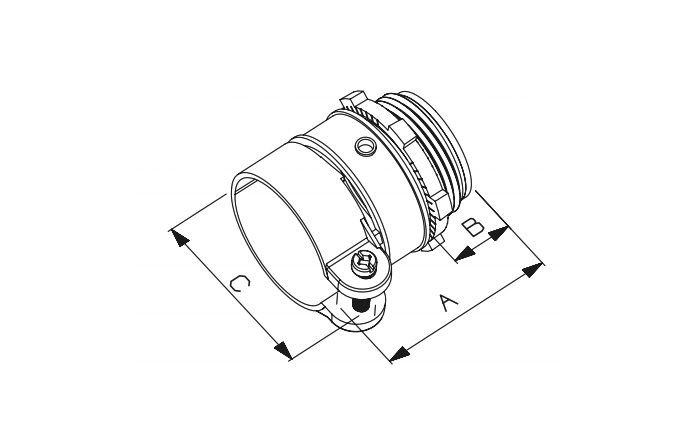

CAT#

A

B

C

82059-A

1.146

0.512

1.141
82060-A1.4370.492
1.370
82061-A1.5750.7461.574
82062-A1.7600.5711.866
82063-A1.8740.5872.145
82064-A2.0080.6102.519
82065-A2.0870.6063.011
82066-A2.854
0.866
3.866
82067-A2.236
0.8663.354
82068-A3.8400.9024.788
82069-A4.0550.9025.303
