Home » Products » FLEX&NM&SE FITTING » Flex conduit fittings

:: Flex conduit fittings

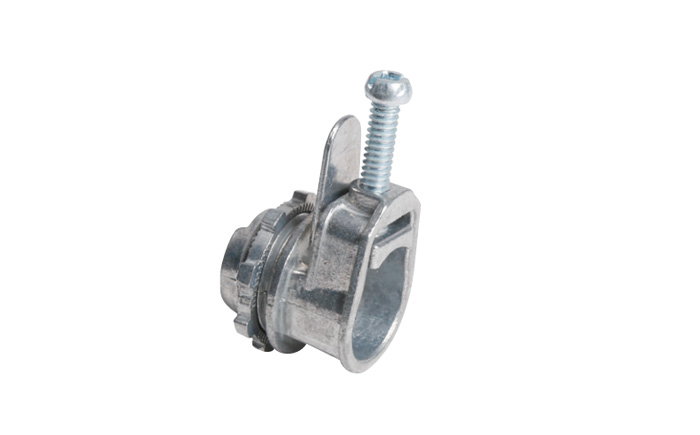

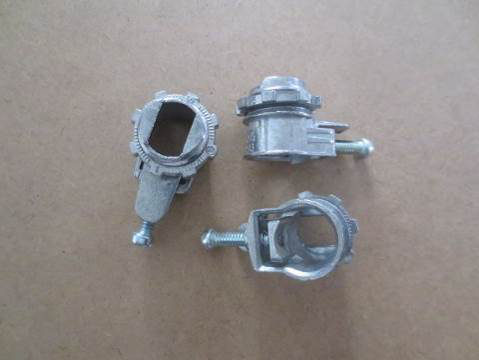

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST

  • Model: 82018-82021
    Certifications: UL
    UL FILE NO.: E315258 1''
    USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.
  • Inquiry
    • FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
    • FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
    • FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
    • FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
    • FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

82018

3/8''

50

500

82019

1/2''

25

250

82020

3/4''

20

200

82021

1''

10

100

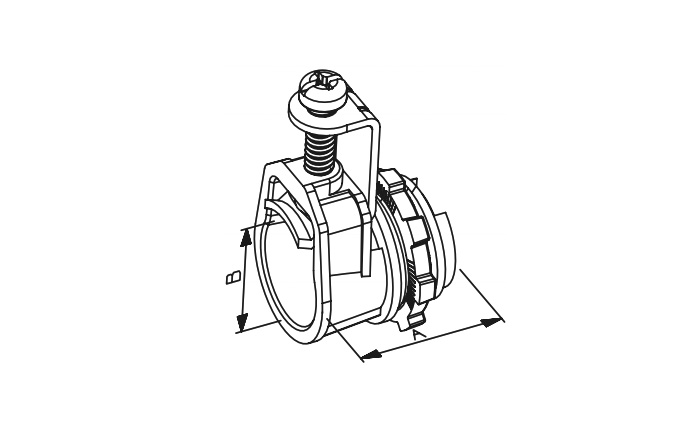

CAT#

A

B(MIN)

B(MAX)

82018

0.930

0.400

0.500

82019

1.380

0.660

0.990

82020

1.500

0.700

1.150

82021

1.642

1.100

1.400
