:: Flex conduit fittings

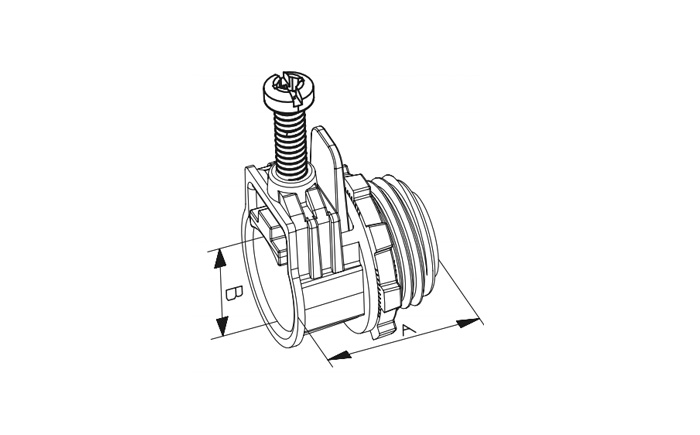

FLEX CONNECTORS - SADDLE TYPE - WITH INSULATED THROAT - ZINC DIE CAST

  • Model: 82018-A
    Certifications: UL
    UL FILE NO.: E315258
    USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.
  • Inquiry
    • FLEX CONNECTORS - SADDLE TYPE - WITH INSULATED THROAT - ZINC DIE CAST
    • FLEX CONNECTORS - SADDLE TYPE - WITH INSULATED THROAT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

82018-A

3/8''

50

500



CAT#

A

B(MIN)

B(MAX)

82018-A

1.017

0.134

0.681
Immediately Consult
Name *
Email *
Phone
Message *
Verification code *
  Click Refresh
Tag: ZINC FITTING,CONNECTOR,CABLE CONNECTOR,FLEX CONNECTOR
Related Products
90° LIQUID-TIGHT CONNECETORS - NYLON
90° LIQUID-TIGHT CONNECETORS - NYLON
EMT OFFSET CONNECTORS - EMT TO BOX - SET SCREW TYPE - ZINC DIE CAST
EMT OFFSET CONNECTORS - EMT TO BOX - SET SCREW TYPE - ZINC DIE CAST
ONE GANG COVER GFCI-VERTICAL INCLUDE GASKET, SCREWS - ZINC
ONE GANG COVER GFCI-VERTICAL INCLUDE GASKET, SCREWS - ZINC
TWO GANG COVER TWO GFCI INCLUDE GASKET, SCREWS - ZINC
TWO GANG COVER TWO GFCI INCLUDE GASKET, SCREWS - ZINC
Related News

Other Products

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST

Certifications: UL
UL FILE NO.:3/8"- 3/4": E315258
1":E315256
USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258 1''
USE:USE TO CONNECT STANDARD FLEXIBLE METALLIC CONDUIT ,AV,MC,OR NM SHEATHED CABLE,TO A STEEL OUTLET BOX OR OTHER METAL ENCLOSURE.

FLEX CONNECTORS - SADDLE TYPE - ZINC DIE CAST
BX FLEX CONNECTOR - SET SCREW TYPE - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315256
USE:FOR USE IN DRY LOCATIONS TO CONNECT STANDARD FLEXIBLE METAL CONDUIT TO A BOX OR ENCLOSURE.

BX FLEX CONNECTOR - SET SCREW TYPE - ZINC DIE CAST
FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258 3/8'' - 3/4''
E315256 1'' - 4''
USE:USED TO TERMINATE STANDARD DTANDARD FLEXIBLE METAL CONDUIT TO A 1/2" KNOCKOUT OF DRY LOCATION BOX OR ENCLOSURE.

FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR - ZINC DIE CAST
FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315258 3/8'' - 3/4''
E315256 1'' - 4''

FLEXIBLE METAL CONDUIT SQUEEZE CONNECTOR WITH INSULATED THROAT - ZINC DIE CAST
FLEX CONNECTORS - SCREW IN - ZINC DIE CAST

Certifications: UL
UL FILE NO.: E315256
USE:FOR USE IN DRY LOCATIONS TO CONNECT STANDARD STANDARD FLEXIBLE METAL CONDUIT TO A BOX OR ENCLOSURE.

FLEX CONNECTORS - SCREW IN - ZINC DIE CAST
