Home » Products » FLEX&NM&SE FITTING » Flex conduit fittings

:: Flex conduit fittings

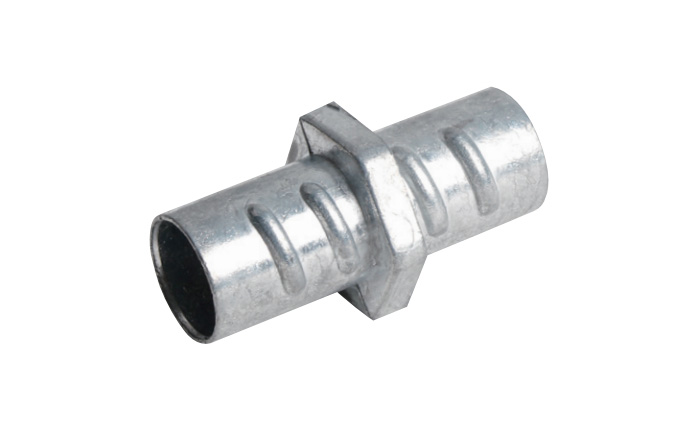

FLEX CONNECTORS - SCREW IN - ZINC DIE CAST

  • Model: 83031-83036
    Certifications: UL
    UL FILE NO.: E315256
    USE:FOR USE IN DRY LOCATIONS TO COUPLE STANDARD STANDARD FLEXIBLE METAL CONDUIT TO STANDARD STANDARD FLEXIBLE METAL CONDUIT.
  • Inquiry
    • FLEX CONNECTORS - SCREW IN - ZINC DIE CAST
    • FLEX CONNECTORS - SCREW IN - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

83031

1/2'

25

250

830323/4''25250
830331''
25250
830341 1/4''
30120
830351 1/2''
25100
830362''1040

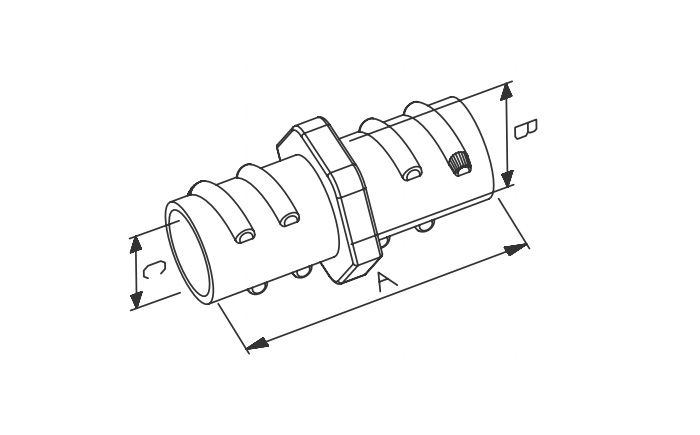

CAT#

A

BC

83031

1.811

0.9060.540
830322.0511.1970.738
830332.4131.3500.920
830342.7561.752
1.169
830353.0942.1061.400
830363.276
2.6571.885
