Home » Products » FLEX&NM&SE FITTING » Flex conduit fittings

:: Flex conduit fittings

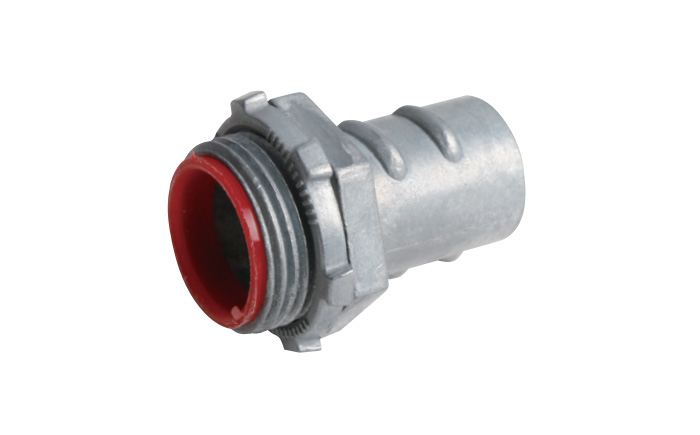

FLEX CONNECTORS - SCREW IN - WITH INSULATED THROAT - ZINC DIE CAST

  • Model: 83013-A-83019-A
    Certification:UL
    UL FILE NO.:E315256
    USE:FOR USE IN DRY LOCATIONS TO CONNECT STANDARD STANDARD FLEXIBLE METAL CONDUIT TO A BOX OR ENCLOSURE.
  • Inquiry
    • FLEX CONNECTORS - SCREW IN - WITH INSULATED THROAT - ZINC DIE CAST
    • FLEX CONNECTORS - SCREW IN - WITH INSULATED THROAT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

83013-A

3/8''

50

500

83014-A1/2''50500
83015-A3/4''
50500
83016-A1''
25250
83017-A1-1/4''
10100
83018-A1-1/2''1040
83019-A2''
1040

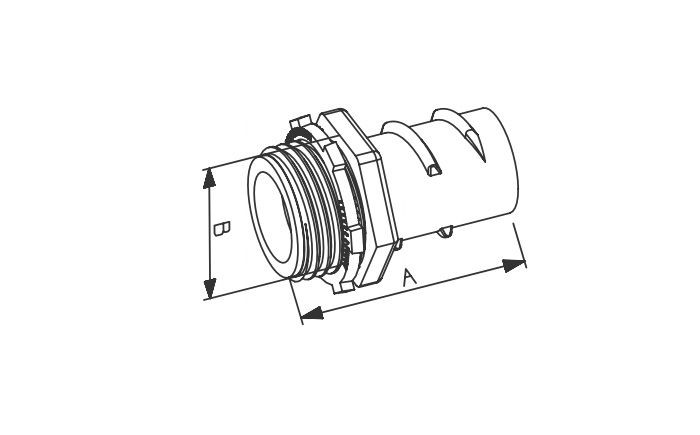

CAT#

A

B

83013-A

1.363

0.906
83014-A1.4260.913
83015-A1.6741.126
83016-A1.9851.366
83017-A2.2221.744
83018-A2.4932.098
83019-A2.6392.650
