:: EMT Fittings

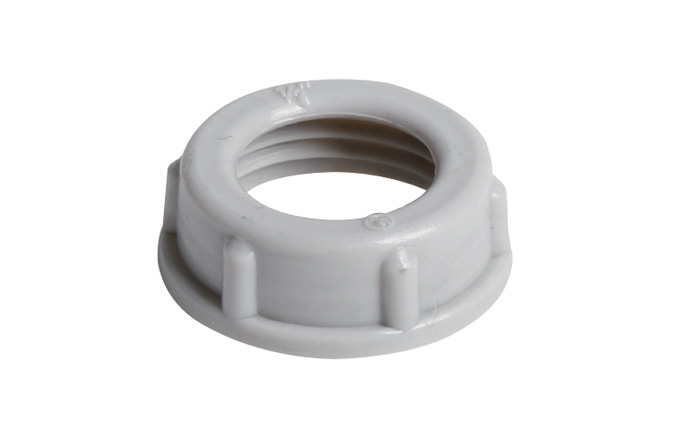

https://www.yinlei.com/uploadfiles/128.1.164.122/webid471/source/201705/149457806693.jpg

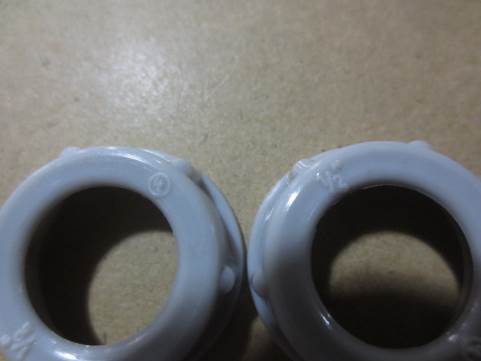

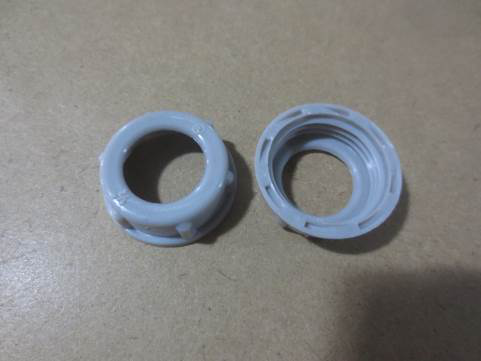

PLASTIC INSULATING BUSHINGS

Model: 33001-33012
Certifications: UL
UL FILE NO.1/2"-4": E315256
3 1/2",5",6":E358603

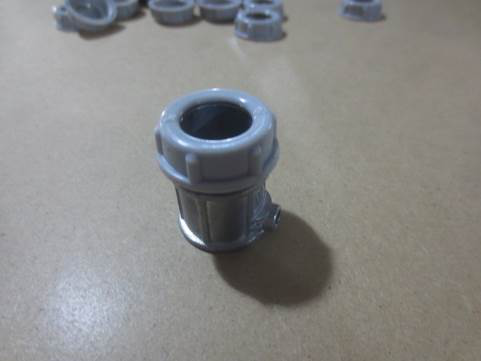

USE:PLASTIC INSULATING BUSHINGS ARE USED ON THE END OF RIGID AND IMC CONDUITS AND OTHER THREADED CONNECTORS TO PROVIDE A SMOOTH WELL ROUNDED BEARING SURFACE TO PROTECT WIRES OR CABLES.

products detail

CATALOG NUMBER	TRADE SIZE	INNER CARTON	MASTER CARTON
33001	1/2''	100	1000
33002	3/4''	100	1000
33003	1''	50	500
33004	1 1/4''	25	250
33005	1 1/2''	25	250
33006	2''	25	100
33007	2 1/2''	10	100
33008	3''	10	100
33009	3 1/2"	-	20
33010	4"	-	20
33011	5"	-	10
33012	6"	-	10

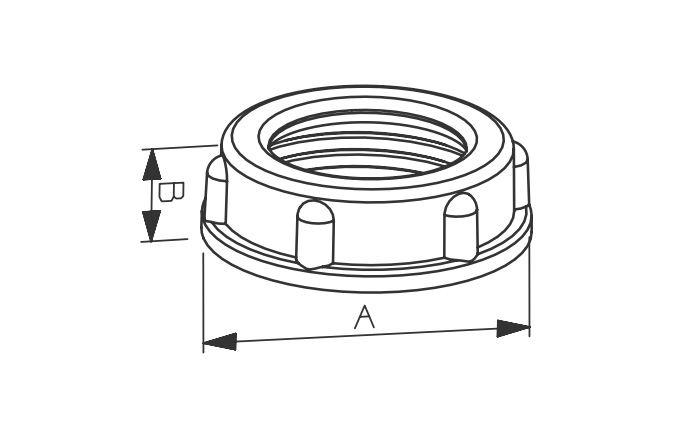

CAT#	A	B
33001	1.051	0.362
33002	1.283	0.386
33003	1.618	0.480
33004	1.902	0.567
33005	2.295	0.476
33006	2.630	0.531
33007	3.236	0.614
33008	3.911	0.677
33009	4.307	0.709
33010	4.810	0.722
33011	6.250	1.000
33012	7.500	1.000
