:: EMT Fittings

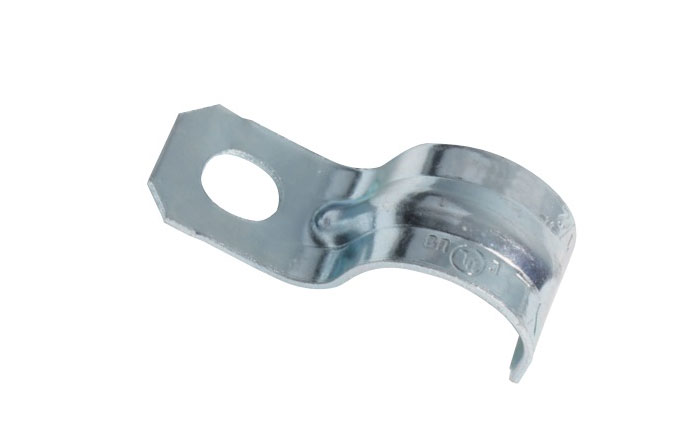

E.M.T. STRAP ONE HOLE - STEEL

  • Model: 62021-62030
    Certifications:UL
    UL FILE NO.:E331642
    USE:THE FUNCTION OF FIXING PIPES.
  • Inquiry
    • E.M.T. STRAP ONE HOLE - STEEL
    • E.M.T. STRAP ONE HOLE - STEEL
    • E.M.T. STRAP ONE HOLE - STEEL
    • E.M.T. STRAP ONE HOLE - STEEL
    • E.M.T. STRAP ONE HOLE - STEEL
    • E.M.T. STRAP ONE HOLE - STEEL

products detail

CATALOG NUMBERTRADE SIZEINNER CARTONMASTRTONER CA
620211/2"1001000
620223/4"50500
620231"50500
620241 1/4"-50
620251 1/2"-25
620262"-25
620272 1/2"-50
620283"-25
620293 1/2"-25
620304"-25

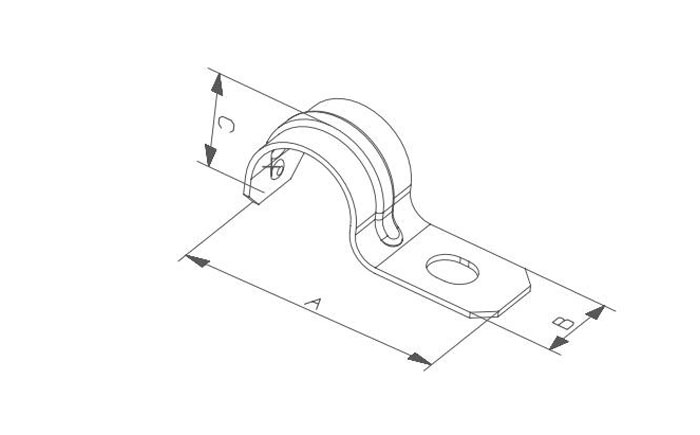

CAT#

A

B

C

62021

1.657

0.571

0.665

62022

1.937

0.646

0.933

62023

2.276

0.772

1.110

62024

2.858

0.878

1.480

62025

3.126

1.000

1.673

62026

3.921

1.138

2.020

62027

5.012

1.173

2.602

62028

5.374

1.215

3.291

62029

6.390

1.254

4.248

62030

6.850

1.157

4.177
