Home » Products » EMT& RIGID FITTING » EMT Fittings

:: EMT Fittings

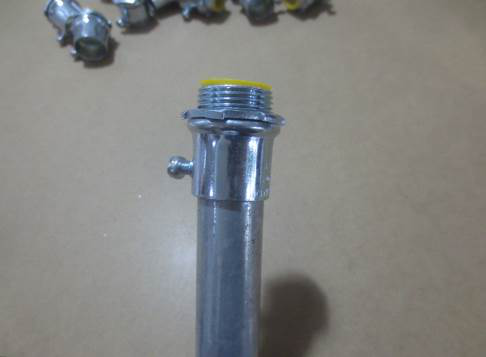

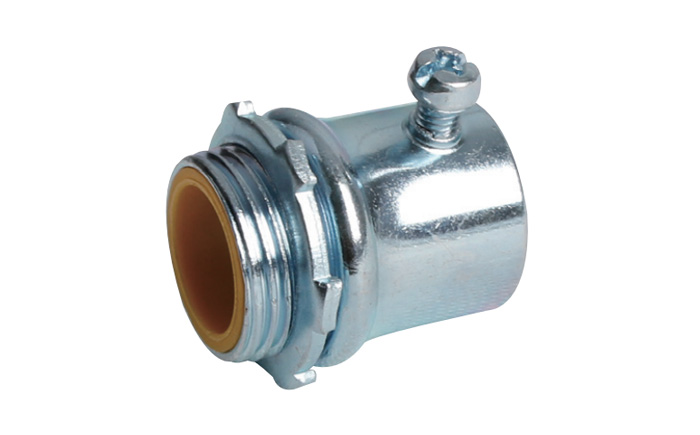

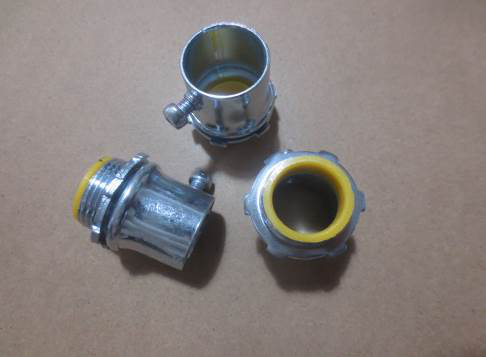

EMT CONNECTORS - SET SCREW TYPE - WITH INSULATED THROAT - STEEL

  • Model: 66001-A-66010-A
    Certifications: UL
    UL FILE NO.: E315281 1/2'' - 2''
           E315256 21/2'' - 4''
    USE:USED TO CONNECT EMT CONDUIT TO ELECTRICAL BOX OR ENCLOSURE.
  • Inquiry
    • EMT CONNECTORS - SET SCREW TYPE - WITH INSULATED THROAT - STEEL
    • EMT CONNECTORS - SET SCREW TYPE - WITH INSULATED THROAT - STEEL
    • EMT CONNECTORS - SET SCREW TYPE - WITH INSULATED THROAT - STEEL
    • EMT CONNECTORS - SET SCREW TYPE - WITH INSULATED THROAT - STEEL
    • EMT CONNECTORS - SET SCREW TYPE - WITH INSULATED THROAT - STEEL

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

66001-A

1/2''

50

500

66002-A

3/4''

25

250

66003-A

1''

20

200

66004-A

1 1/4''

-

25

66005-A

1 1/2''

-

25

66006-A

2''

-

20

66007-A

2 1/2''

-

12

66008-A

3''

-

12

66009-A

3 1/2''

-

6

66010-A

4''

-

6

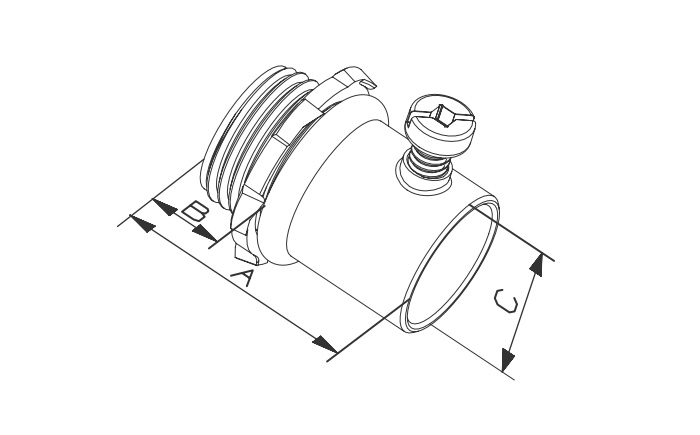

CAT#

A

B

C

66001-A

1.370

0.460

0.848

66002-A

1.535

0.488

1.057

66003-A

1.744

0.551

1.338

66004-A

2.185

0.653

1.688

66005-A

2.362

0.712

1.929

66006-A

2.677

0.799

2.381

66007-A

3.378

0.799

3.161

66008-A

3.858

0.799

3.787

66009-A

4.000

0.968

4.283

66010-A

4.118

0.968

4.803
