Home » Products » EMT& RIGID FITTING » EMT Fittings

:: EMT Fittings

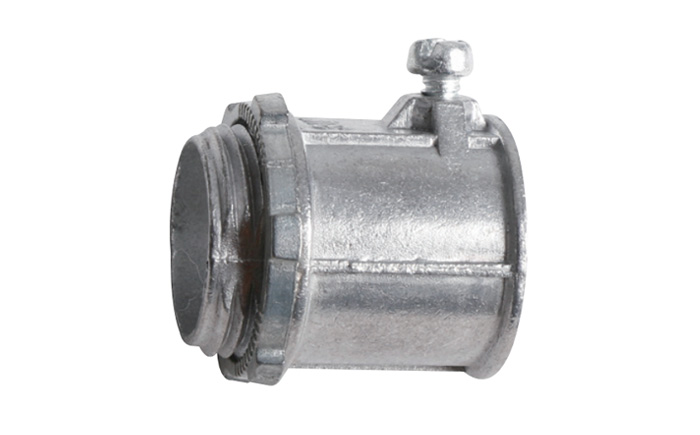

EMT CONNECTORS - SET SCREW TYPE - ALUMINUM

  • Model: 88036-AL-88041-AL
    Certifications: UL
  • Inquiry
    • EMT CONNECTORS - SET SCREW TYPE - ALUMINUM
    • EMT CONNECTORS - SET SCREW TYPE - ALUMINUM

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

88036-AL

1/2''

50

500

88037-AL

3/4''

25

250

88038-AL

1''

50

200

88039-AL

1 1/4''

-

25

88040-AL

1 1/2''

-

25

88041-AL

2''

-

20

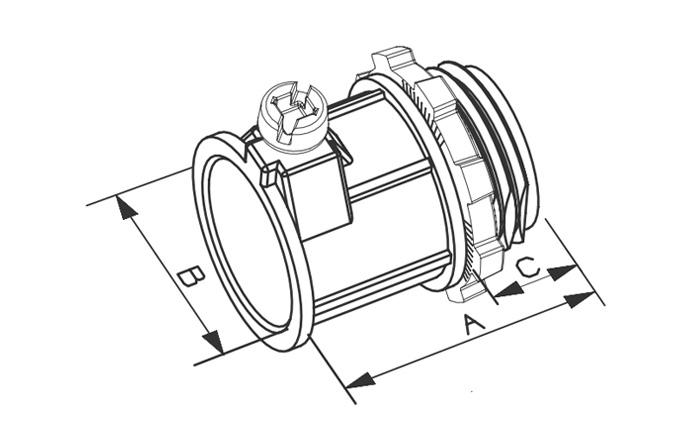

CAT#

A

B

C

88036-AL

1.161

0.929

0.394

88037-AL

1.346

1.161

0.354

88038-AL

1.500

1.406

0.488

88039-AL

1.961

1.803

0.591

88040-AL

2.264

2.059

0.748

88041-AL

2.575

2.520

0.760
