Home » Products » EMT& RIGID FITTING » EMT Fittings

:: EMT Fittings

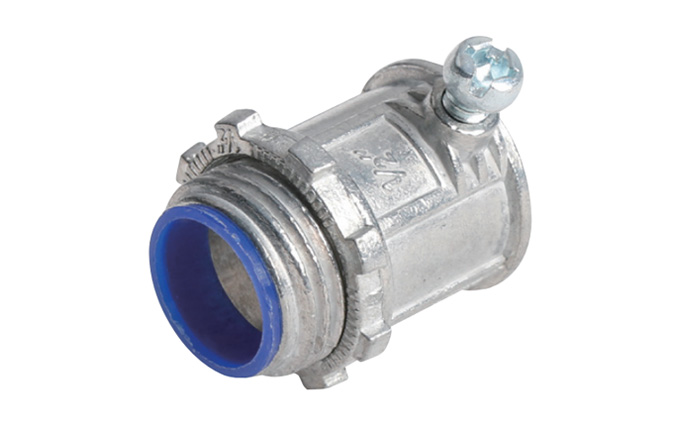

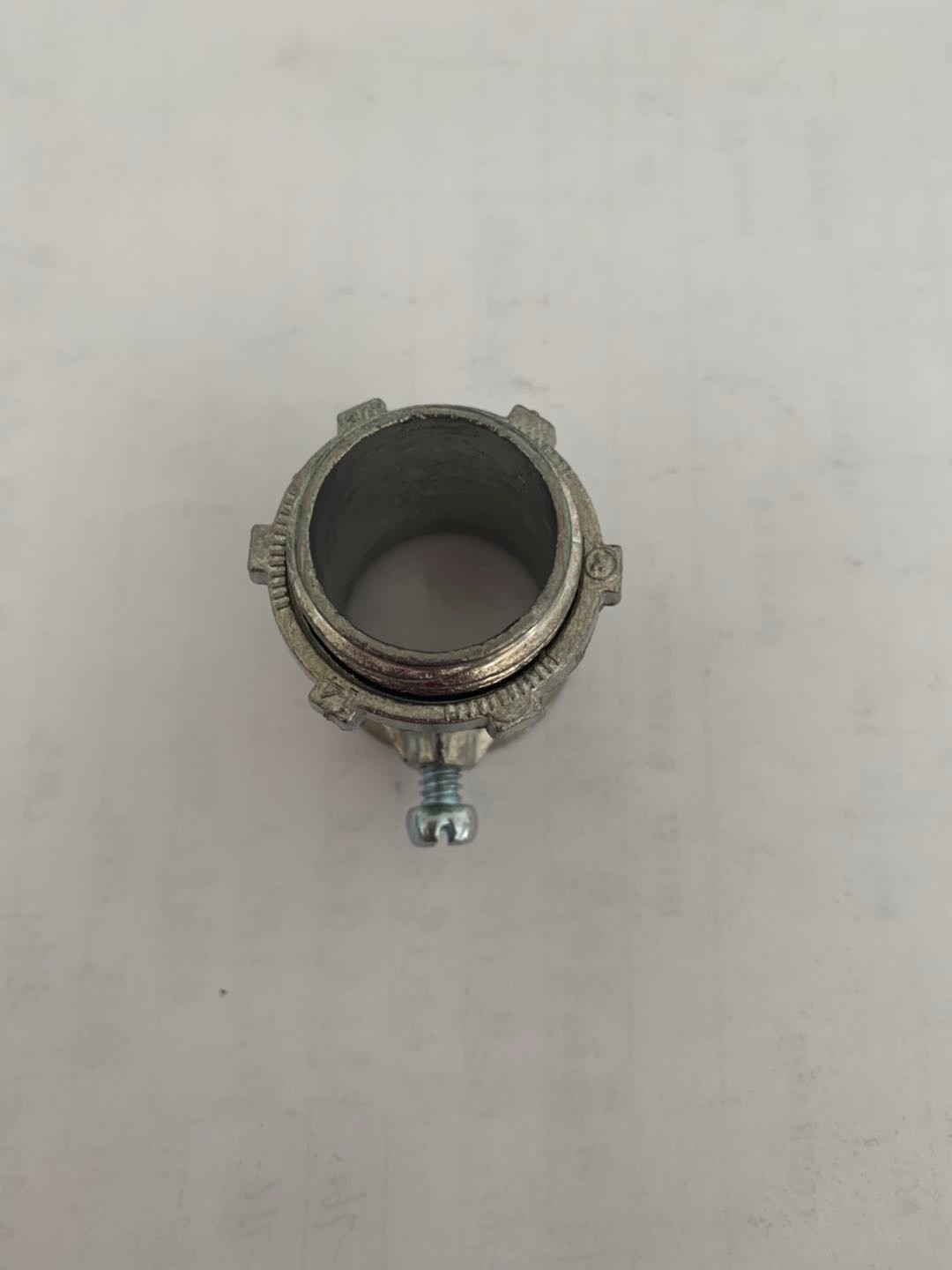

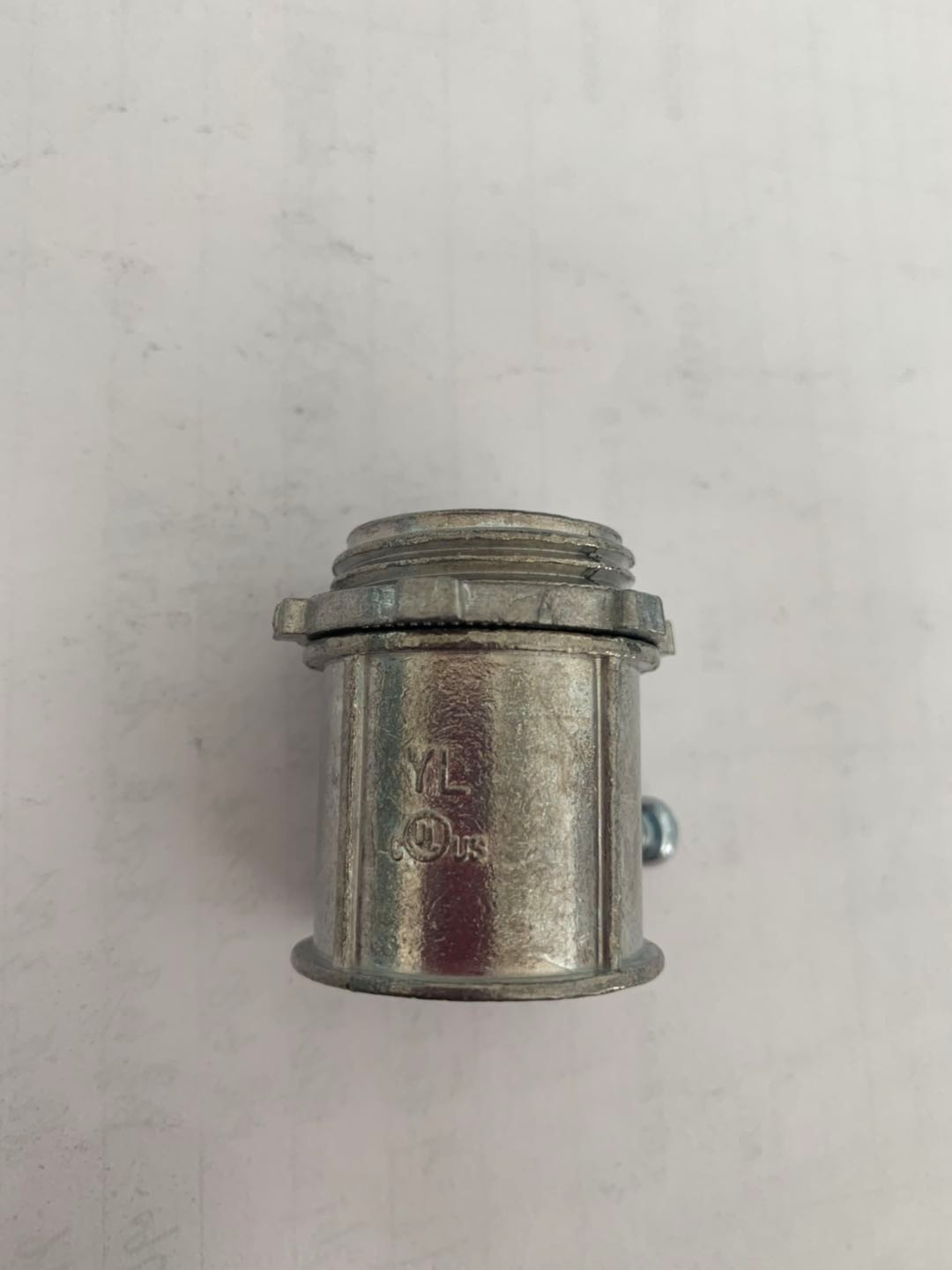

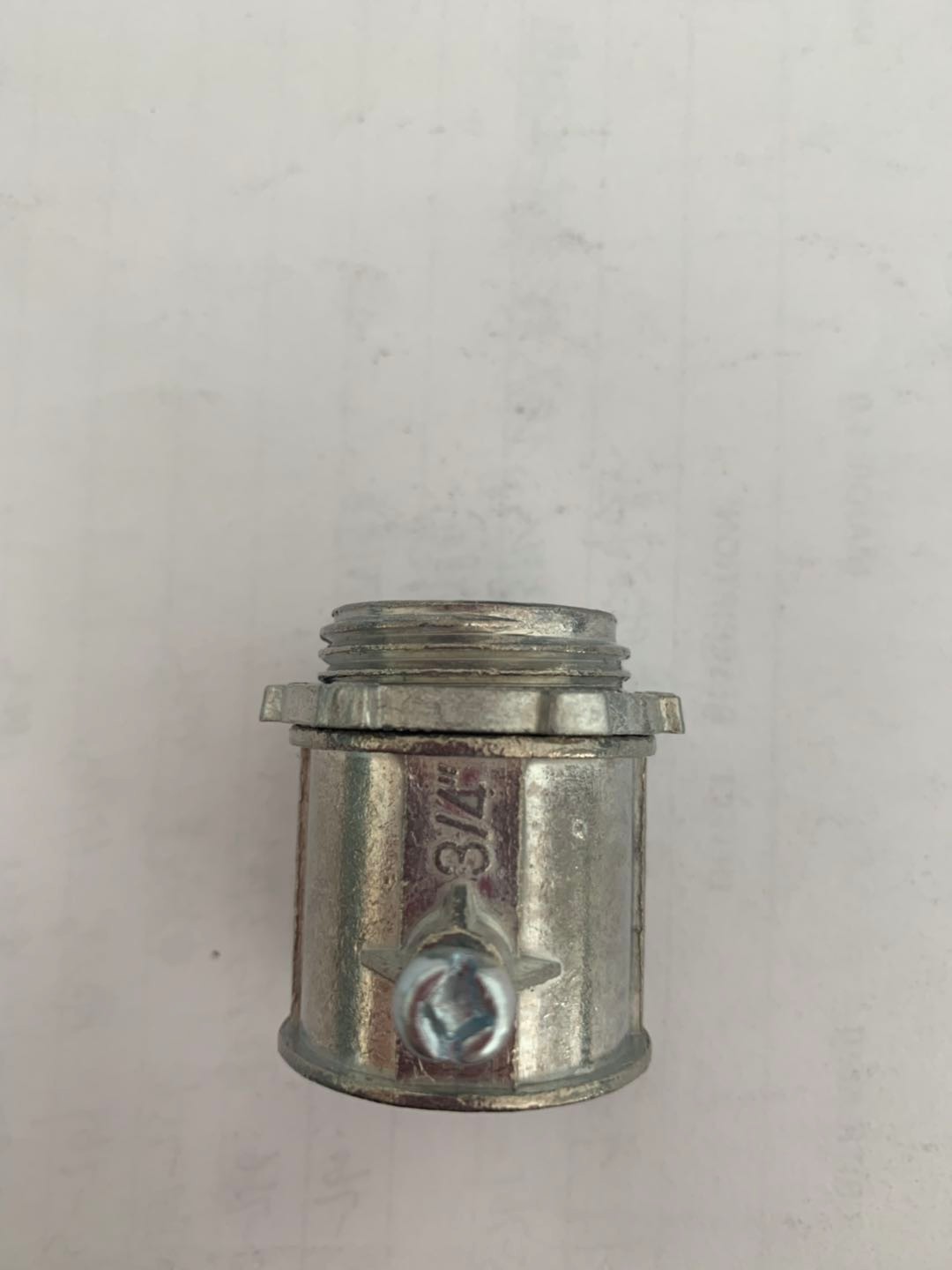

EMT CONNECTOR - SET SCREW WITH INSULATED THROAT - ZINC DIE CAST

  • Model: 88036-A-88045-A
    Certifications: UL
    UL FILE NO.: E315281 1/2"-2"
    E315256 21/2" - 4"
    USE:USE TO CONNECT EMT CONDUIT TO STEEL OUTLET BOX,LOAD CENTER OR OTHET METAL ENCLOSURE.
  • Inquiry
    • EMT CONNECTOR - SET SCREW WITH INSULATED THROAT - ZINC DIE CAST
    • EMT CONNECTOR - SET SCREW WITH INSULATED THROAT - ZINC DIE CAST
    • EMT CONNECTOR - SET SCREW WITH INSULATED THROAT - ZINC DIE CAST
    • EMT CONNECTOR - SET SCREW WITH INSULATED THROAT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

88036-A

1/2''

50

500

88037-A

3/4''

25

250

88038-A

1''

50

200

88039-A

1 1/4''

-

25

88040-A

1 1/2''

-

25

88041-A

2''

-

20

88042-A

2 1/2''

-

12

88043-A

3''

-

12

88044-A

3 1/2''

-

6

88045-A

4''

-

6

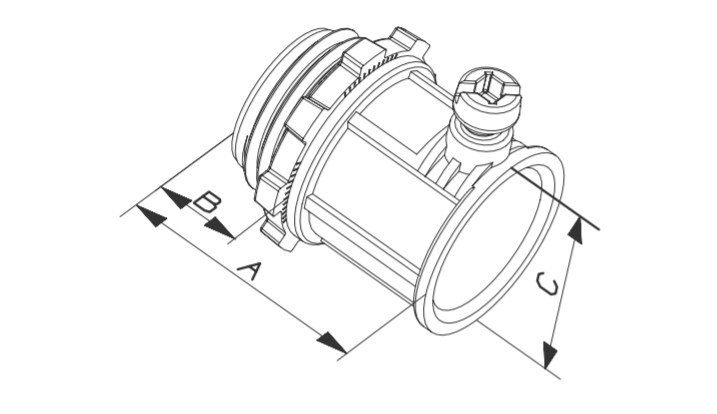

CAT#

A

B

C

88036-A

1.196

0.421

0.933

88037-A

1.417

0.405

1.169

88038-A

1.543

0.539

1.421

88039-A

2.008

1.574

1.823

88040-A

2.299

1.807

2.067

88041-A

2.602

2.267

2.524

88042-A

3.149

1.106

3.295

88043-A

3.433

1.118

3.909

88044-A

3.519

1.118

4.460

88045-A

3.818

1.169

4.881
