:: EMT Fittings

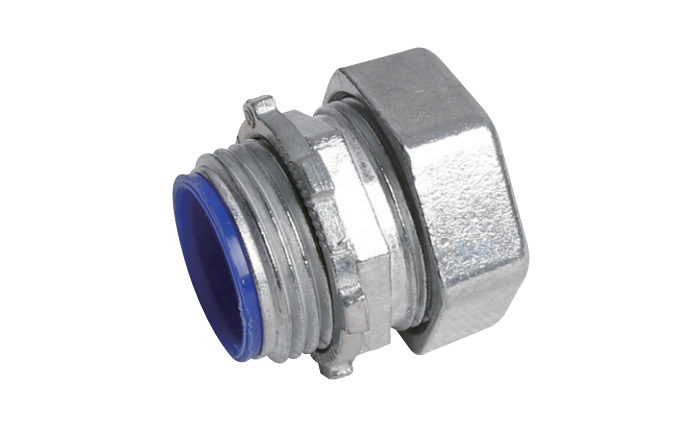

EMT CONNECTOR - COMPRESSION TYPE WITH INSULATING THROAT - ZINC DIE CAST

  • Model: 88046-A-88055-A
    Certifications: UL
    UL FILE NO.: E315281 1/2'' - 2''
    　　　　　　 E315256 21/2'' - 4''
  • Inquiry
    • EMT CONNECTOR - COMPRESSION TYPE WITH INSULATING THROAT - ZINC DIE CAST
    • EMT CONNECTOR - COMPRESSION TYPE WITH INSULATING THROAT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

88046-A

1/2"

50

500

88047-A

3/4"

25

250

88048-A

1"

15

150

88049-A

1 1/4"

10

100

88050-A

1 1/2"

-

10

88051-A

2"

-

10

88052-A

2 1/2"

-

12

88053-A

3"

-

12

88054-A

3 1/2"

-

10

88055-A

4"

-

6

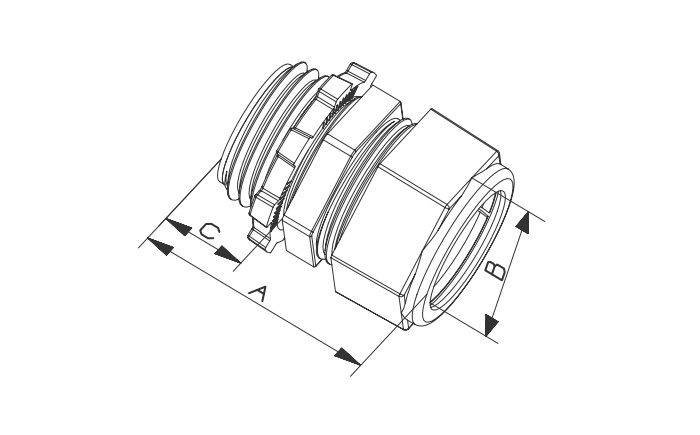

CAT#

A

B

C

88046-A

1.315

0.965

0.492

88047-A

1.268

1.264

0.492

88048-A

1.643

1.516

0.606

88049-A

1.697

1.906

0.654

88050-A

1.953

2.276

0.701

88051-A

2.225

2.610

0.835

88052-A

2.689

3.311

1.083

88053-A

2.869

4.210

1.083

88054-A

2.849

5.060

1.019

88055-A

2.918

5.350

1.166
