:: RIGID &IMC Fittings

https://www.yinlei.com/uploadfiles/128.1.164.122/webid471/source/201705/14945800393.jpg

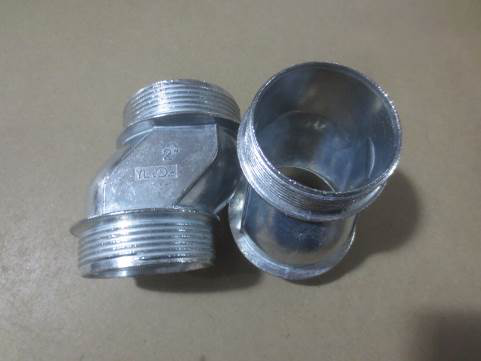

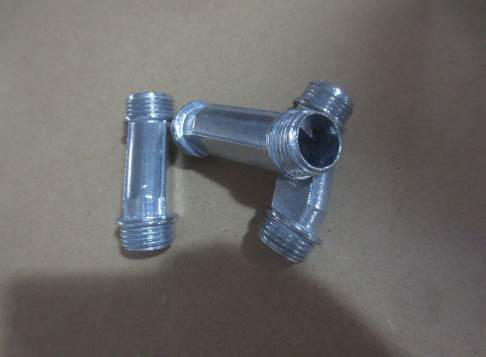

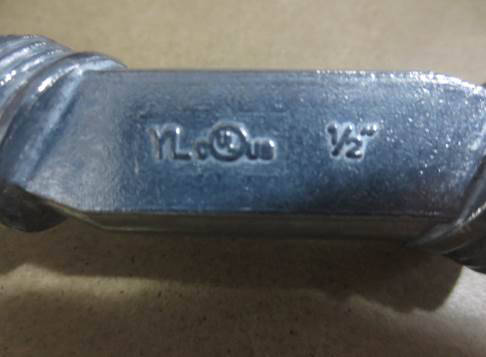

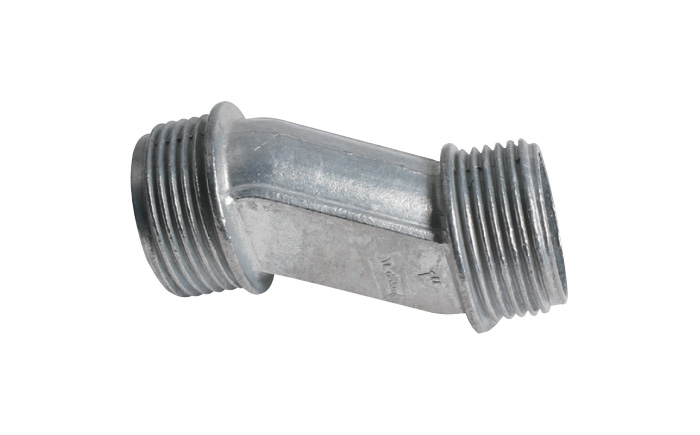

OFFSET CONNECTOR - ZINC DIE CAST

Model: 85078-85085
Certifications: UL
UL FILE NO.: E315256

products detail

CATALOG NUMBER	TRADE SIZE	INNER CARTON	MASTER CARTON
85078	1/2''	10	100
85079	3/4''	10	100
85080	1''	10	100
85081	1 1/4''	5	50
85082	1 1/2''	5	50
85083	2''	2	20
85084	2 1/2''	-	10
85085	3''	-	4

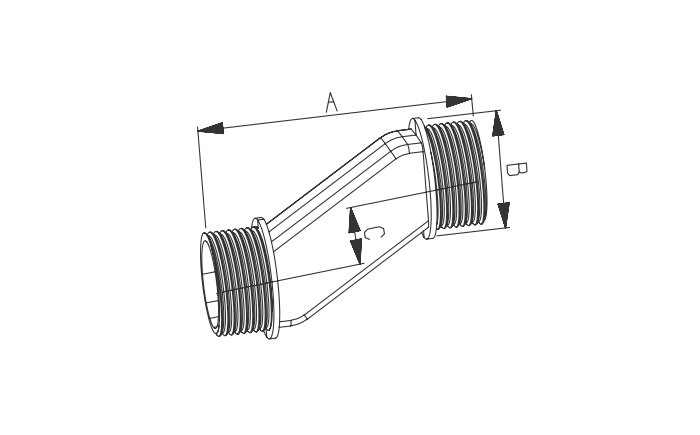

CAT#	A	B	C
85078	2.440	0.915	0.705
85079	2.602	1.125	0.635
85080	2.720	1.398	0.717
85081	2.920	1.835	0.780
85082	3.020	2.047	0.780
85083	3.120	2.590	0.750
85084	4.045	3.320	0.745
85085	4.545	3.860	0.705
