Home » Products » EMT& RIGID FITTING » RIGID &IMC Fittings

:: RIGID &IMC Fittings

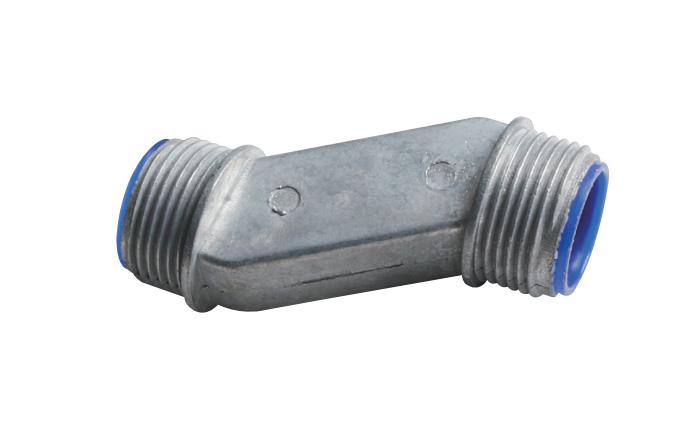

OFFSET CONNECTOR - WITH INSULATED THROAT - ZINC DIE CAST

  • Model: 85078-A-85083-A
    Certifications: UL
    UL FILE NO.: E315256
  • Inquiry
    • OFFSET CONNECTOR - WITH INSULATED THROAT - ZINC DIE CAST
    • OFFSET CONNECTOR - WITH INSULATED THROAT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

85078-A

1/2''

10

100

85079-A

3/4''

10

100

85080-A

1''

10

100

85081-A1 1/4''550
85082-A1 1/2''
550
85083-A2''
220

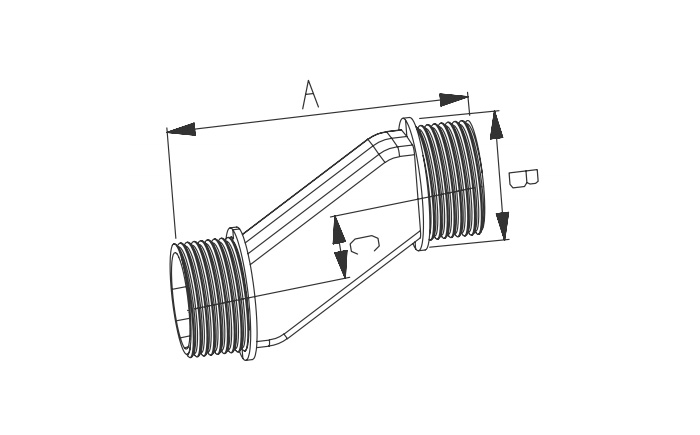

CAT#

A

B

C

85078-A

2.558

0.915

0.705

85079-A

2.720

1.125

0.635

85080-A

2.800

1.398

0.717
85081-A3.0781.8350.780
85082-A3.1002.0470.780
85083-A3.2782.5900.750
