Home » Products » EMT& RIGID FITTING » EMT,RIGID &IMC Conduit and Elbow

:: EMT,RIGID &IMC Conduit and Elbow

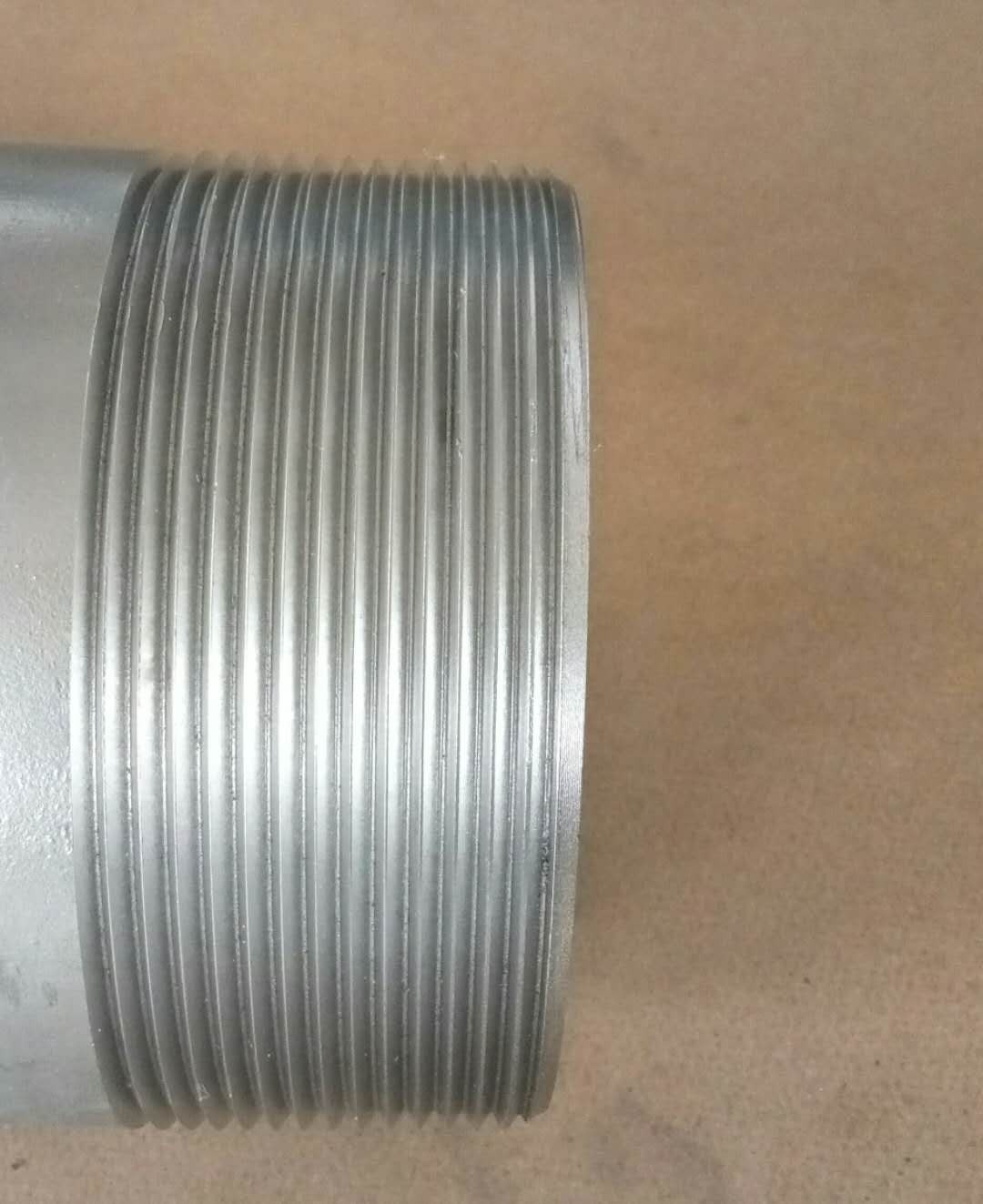

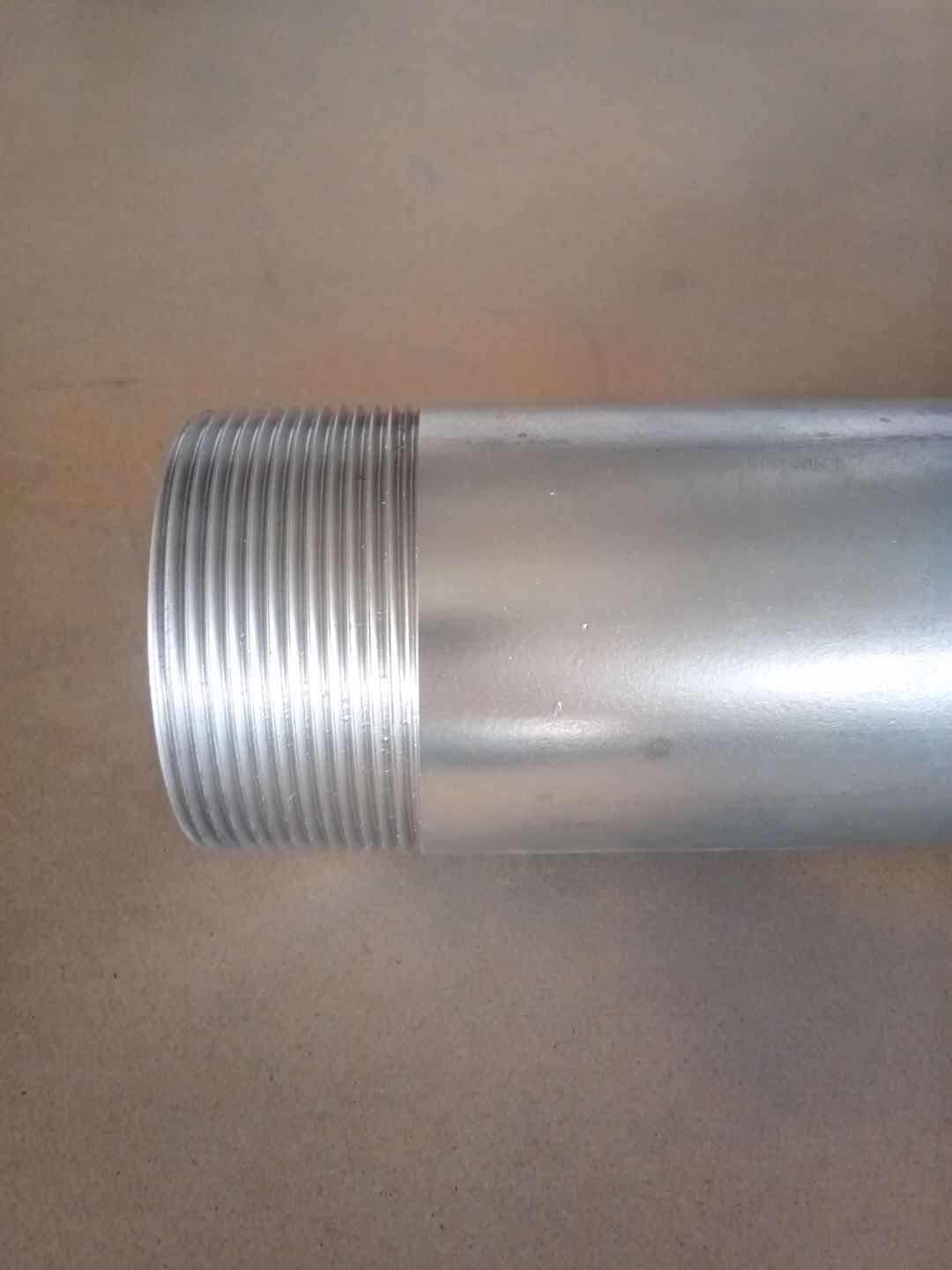

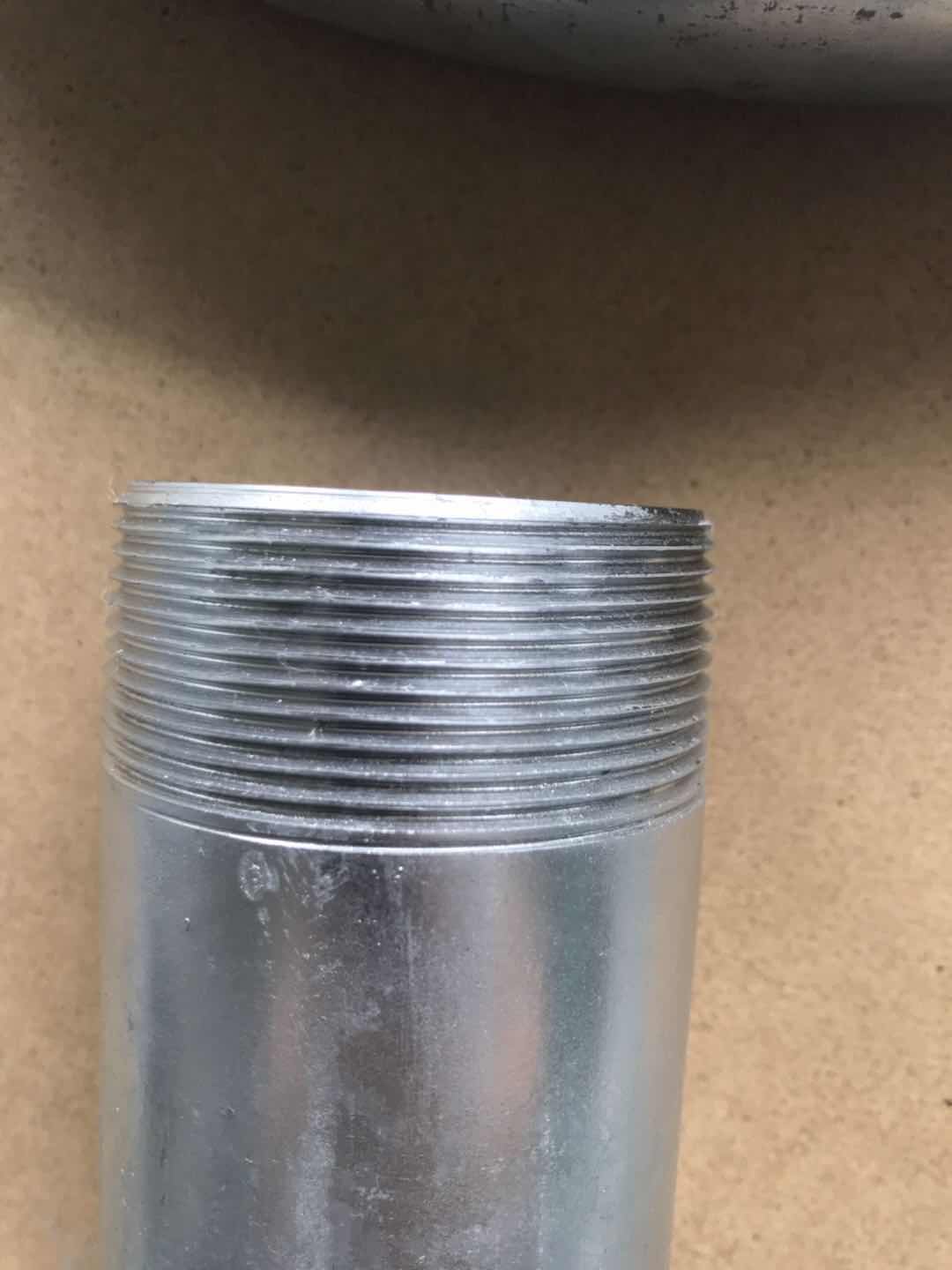

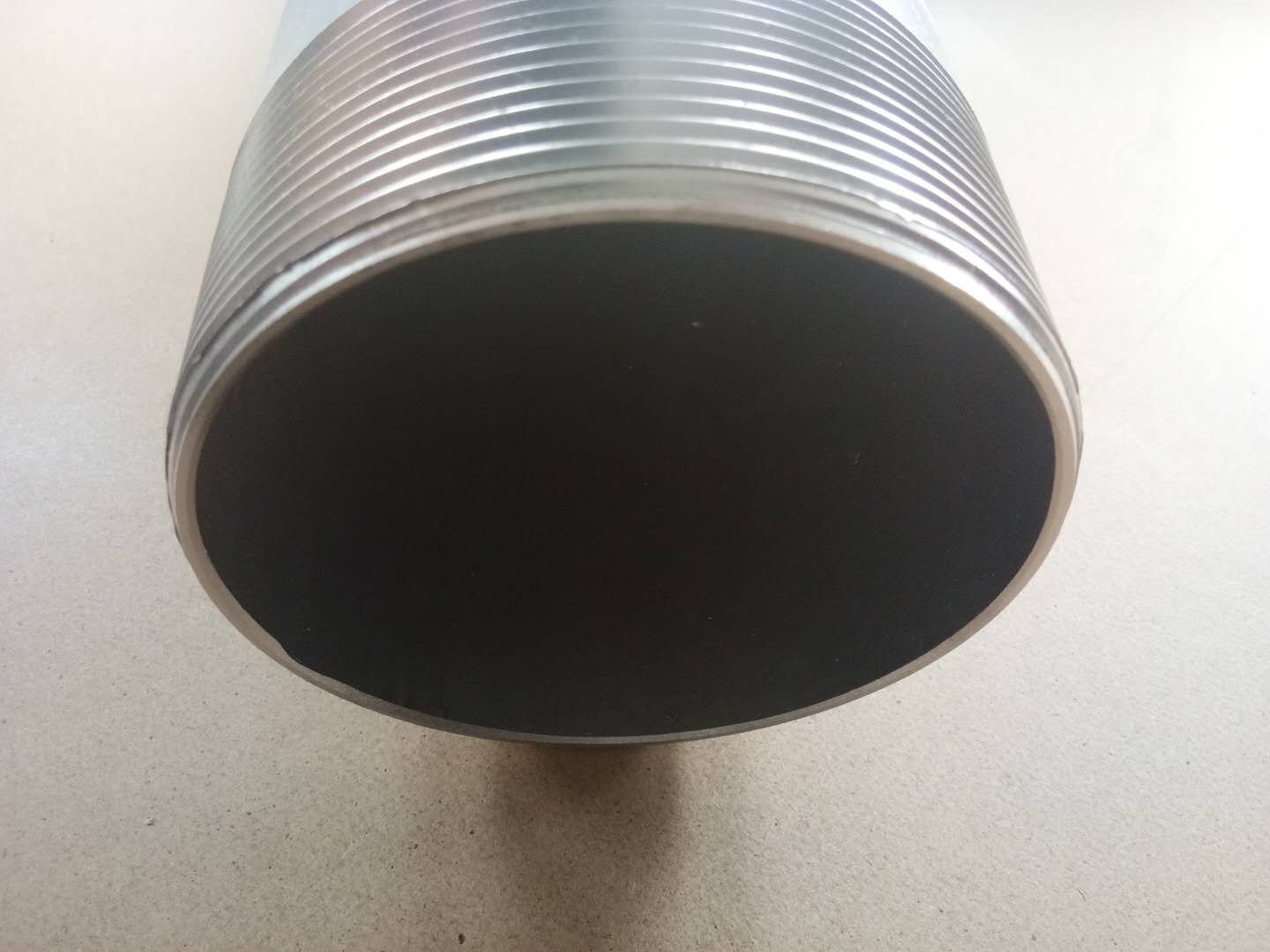

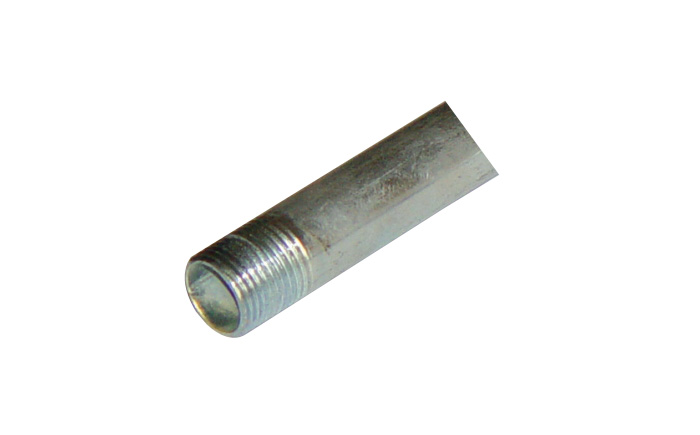

INTERMEDIATE METAL CONDUIT - IMC - STEEL

  • Model: 98301-98310
    Certifications: UL
    UL FILE NO.: E365588
  • Inquiry
    • INTERMEDIATE METAL CONDUIT - IMC - STEEL
    • INTERMEDIATE METAL CONDUIT - IMC - STEEL
    • INTERMEDIATE METAL CONDUIT - IMC - STEEL
    • INTERMEDIATE METAL CONDUIT - IMC - STEEL
    • INTERMEDIATE METAL CONDUIT - IMC - STEEL

products detail



CATALOG NUMBER

TRADE SIZE

OUTSIDE

(MM)

THICKNESS

(MM)

98301

1/2''

20.70

1.98

98302

3/4''

26.10

2.10

98303

1''

32.80

2.35

983041 1/4''41.602.42
983051 1/2''
47.802.54
983062''
59.902.67
983072 1/2''72.60
3.81
983083''
88.303.81
983093  1/2''100.903.81
983104''
113.403.81
