Home » Products » LIQUID TIGHT FITTING » Liquid Tight Connector

:: Liquid Tight Connector

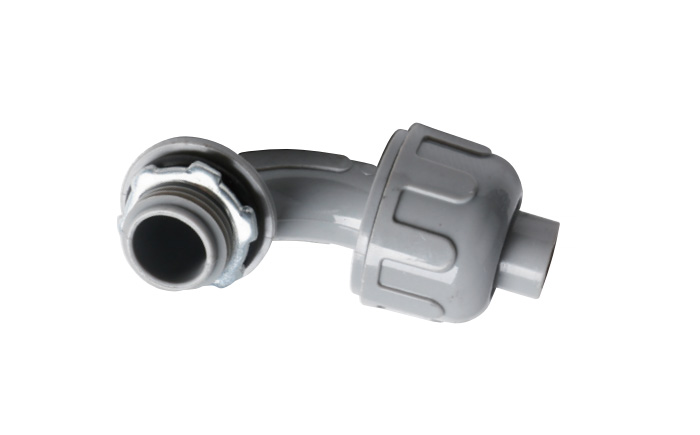

90° LIQUID-TIGHT CONNECETORS - NYLON

  • Model: P490-P496
    Certifications: UL
    UL FILE NO.: E315256
  • Inquiry
    • 90° LIQUID-TIGHT CONNECETORS - NYLON
    • 90° LIQUID-TIGHT CONNECETORS - NYLON

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

85001-P

3/8''

-

-

85002-P

1/2''

10

100

85003-P

3/4''

10

100

85004-P1''550
85005-P1-1/4''
--
85006-P1-1/2''
--
85007-P2''--

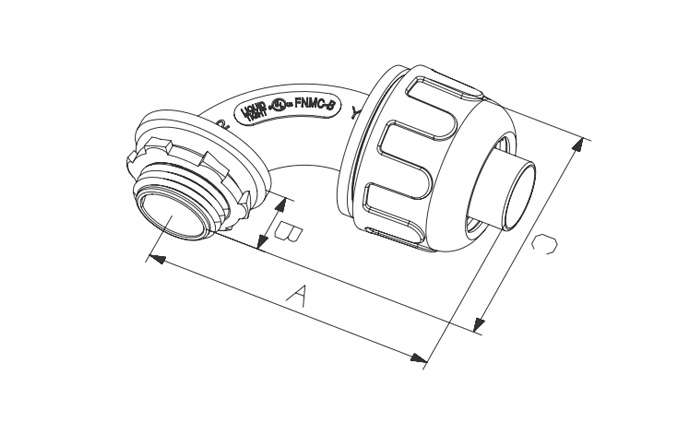

CAT#

A

B

C

85001-P

2.840

0.500

2.030

85002-P

2.840

0.500

2.030

85003-P

3.250

0.500

2.330
85004-P3.5400.6002.950
85005-P4.7500.7605.200
85006-P4.7500.8005.200
85007-P5.4200.860
5.800
