:: Liquid Tight Connector

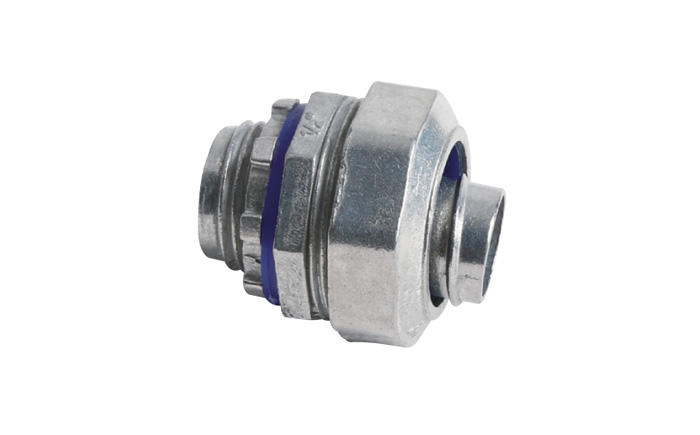

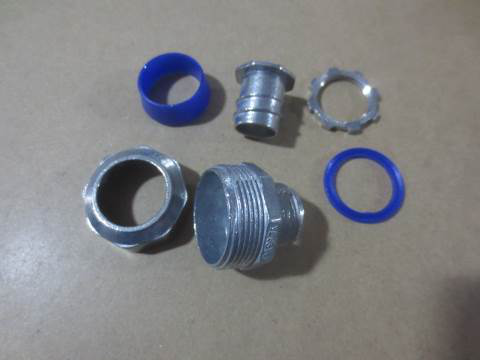

LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST

  • Model: 88115-88125
    Certifications: UL
    UL FILE NO.: E315256
  • Inquiry
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST
    • LIQUID-TIGHT CONNECTORS - STRAIGHT - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

88115

3/8''

20

200

88116

1/2''

20

200

88117

3/4''

10

100

881181''550
881191-1/4''
550
881201-1/2''
220
881212''220
881222-1/2''1
10
881233''110
881243-1/2''-1
881254''-1

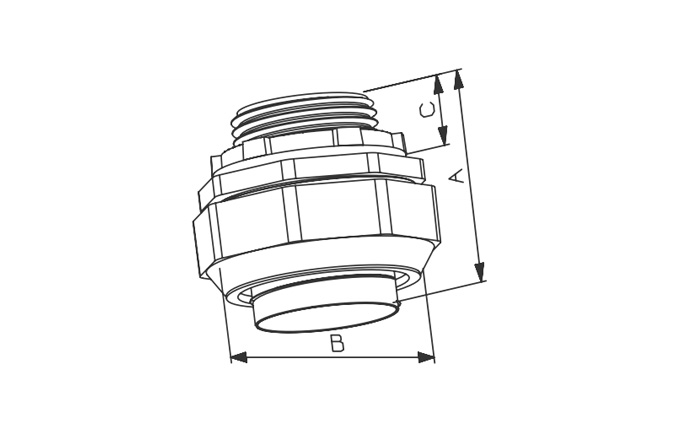

CAT#

A

B

C

88115

1.444

1.299

0.543

88116

1.444

1.307

0.551

88117

1.448

1.583

0.551
881181.8101.7800.716
881192.0311.9090.716
881201.9912.4880.716
881212.0072.9920.684
881223.279
3.709
0.984
881233.440
4.3311.011
881245.4703.6600.920
881253.9845.1731.035
