:: Raintight Fittings

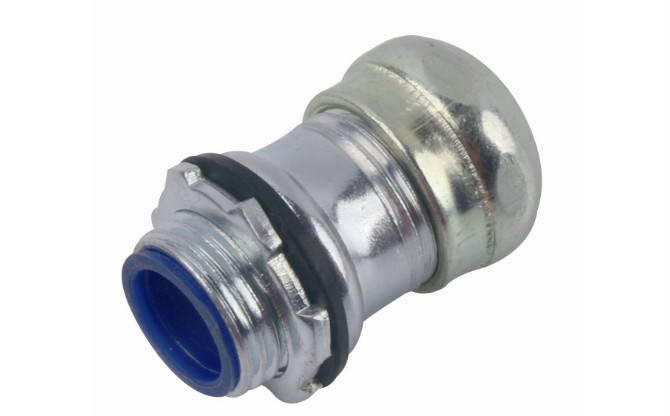

EMT CONNECTORS COMPRESSION TYPE RAINTIGHT WITH INSULATED THROAT - STEEL

  • Model: 66101-RA-66110-RA
    Certifications: UL
    UL PROFILE NUMBER:E315281
    USE:USED TO CONNECT EMT CONDUIT TO ELECTRICAL BOX OR ENCLOSURE.
  • Inquiry
    • EMT CONNECTORS COMPRESSION TYPE RAINTIGHT WITH INSULATED THROAT - STEEL
    • EMT CONNECTORS COMPRESSION TYPE RAINTIGHT WITH INSULATED THROAT - STEEL

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

66101-RA

1/2''

50

250

66102-RA

3/4''

25

200

66103-RA

1''

-

25

66104-RA

1 1/4''

-

25

66105-RA

1 1/2''

-

20

66106-RA

2''

-

20

66107-RA

2 1/2''

-

12

66108-RA

3''

-

12

66109-RA

3 1/2''

-

6

66110-RA

4''

-

6

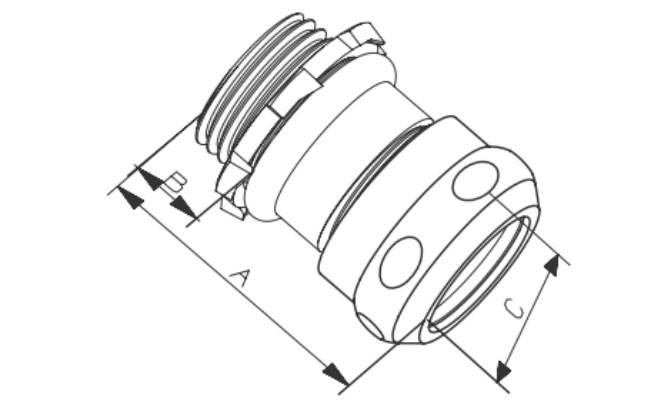

CAT#

A

B

C

66101-RA

0.689

0.500

1.125

66102-RA

0.750

0.500

1.375

66103-RA

0.846

0.562

1.687

66104-RA

1.687

1.012

2.062

66105-RA

1.717

1.062

2.250

66106-RA

1.875

1.125

2.750

66107-RA

1.968

1.562

3.625

66108-RA

2.689

1.562

4.250

66109-RA

2.812

1.812

4.687

66110-RA

2.812

1.812

5.187
